BSB45100-2Z-SU-XL
Axial angular contact ball bearing
Axial angular contact ball bearing BSB..-2Z-SU-XL, single direction, no screw mounting
Main Dimensions & Performance Data
| d | 45 mm | Bore diameter |
0 mm | Bore diameter upper tolerance | |
-0.006 mm | Bore diameter lower tolerance | |
| D | 100 mm | Outside diameter |
0 mm | Outside diameter upper tolerance | |
-0.008 mm | Outside diameter lower tolerance | |
| B | 20 mm | Width |
0 mm | Width upper tolerance | |
-0.12 mm | Width lower tolerance | |
| Ca | 68,000 N | Basic dynamic load rating, axial |
| C0a | 172,000 N | Basic static load rating, axial |
| Cua | 10,400 N | Fatigue load limit, axial |
| nG Grease | 4,000 1/min | Limiting speed for grease lubrication |
| nϑ | 2,700 1/min | Thermally safe operating speed |
| ≈m | 0.812 kg | Weight |
Mounting dimensions
| Da | 85.5 mm | Diameter of housing |
| Da | H12 | Diameter of housing clearance |
| da | 64.5 mm | Diameter shaft |
| da | h12 | Diameter shaft clearance |
Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| r1 min | 1.5 mm | Minimum chamfer dimension |
| a | 75 mm | Distance between the apexes of the pressure cones |
| α | 60 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| MR | 0.33 Nm | Bearing frictional torque |
| caL | 1,473 N/µm | Rigidity axial |
2.5 µm | Axial runout | |
ZM50 | Recommended INA precision locknut for radial locking | |
AM50 | Recommended INA precision locknut for axial locking | |
| MA | 120 Nm | Tightening torque for the recommended INA precision locknut |
23,770 N | Required locknut force axial |
Downloads:
Your current product variant
| Cage | Standard | Polyamide cage |
| Sealing | 2Z | Minimal gap seal on both sides |
| Arrangement bearing set | SU | Single bearing |
| Lubricant | Without | Not greased |
Characteristics
We are sorry...
There is currently no CAD file available for this product. If you’d like to be notified when CAD is available, sign in or register for free.
All
English
2018-03-15 | Technische Produktinformation | TPI 123 | Englisch
Bearings for screw drives
2017-08-15 | Katalog | MH1 Dismounting Mechanical | Englisch
Dismounting of rolling bearings - Mechanical dismounting

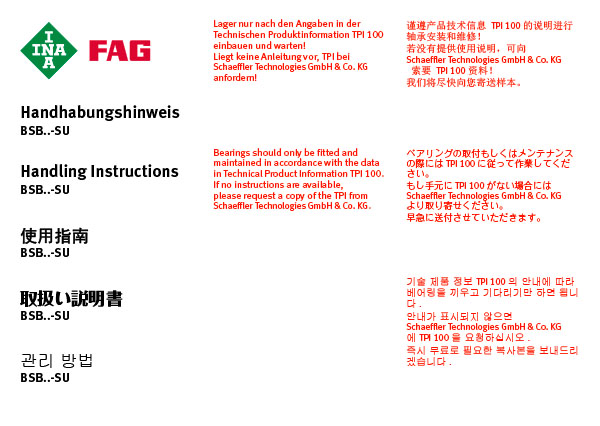

2007-05-15 | Anleitung (Montage, Betrieb) | MON 47 | Englisch
