Linear Motors

Straightforwardness in perfection: in a nutshell, linear motors from Schaeffler Industrial Drives stand for precision, dynamics and energy efficiency at the highest level. The linear motor portfolio impresses with reliability and optimises your application in terms of availability, higher productivity and better machining quality. Each series has its own special characteristics that make it particularly suitable for certain applications. The range extends from the “sensitive” to the dynamic to the powerful engine.In short, the perfect drive for every application.

Advantages
Portfolio
Applications
Publications
Contact

Advantages

Lower costs

With up to 50% less power loss for the same force output, operating costs can be significantly reduced.

More productivity

Productivity can be significantly increased with up to 40% more nominal force.

Everything from a single source

Obtain motor and guide from a single source and thereby benefiting economically from completely new performance and design options.

Portfolio

Linear motors for precise positioning, high terminal velocities and high efficiency

Linear motors L1
The all-rounder.
Standard motors with and without water cooling in the L1A, L1B and L1C series, peak forces up to 5170 N.
Linear motors L7
The efficient ones.
Highly efficient water-cooled motors with optional secondary cooling, peak forces up to 24300 N.
Linear motors L2U
The powerful ones.
Motors in double-sided design for compensating the attraction forces and increasing the dynamics, peak forces up to 12100 N.

Linear motors ULIM
The dynamic ones.
High accelerating capacity and very high velocity, peak forces up to 1930 N.
Linear motors UPLplus
The lightweight ones.

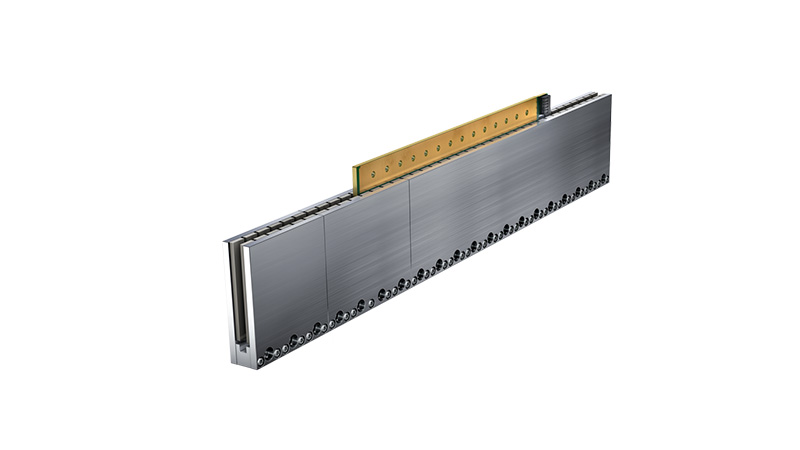

Cogging-free motors based on printed circuit boards, peak forces up to 1300 N.

Applications

Linear motors have a decisive influence in terms of dynamics, precision and reliability in the following applications: Handling systems, pick and place applications, machines for circuit manufacture, AOI systems, measuring and testing machines, machines for optical inspections, medical equipment, wafer positioning and inspection systems, laser cutting, feeds, water jet cutting systems, milling and grinding machines, turning-milling centres, packaging machines, printing presses, electronics assembly, plotters with laser direct exposure, precision automation, semiconductor manufacturing, machine tools.

Please contact us for special applications and drive solutions.

Publications

Direct Drives - For more productivity and less energy loss
Download
L7-Series High Efficiency Linear Motors
Download
Ironless Linear Motors: UPLplus Series
Download

Contact

Our Schaeffler Lifetime Solutions customer support is ready to help you implement your predictive maintenance strategy and solution.

Would you like to discuss a specific project with us or obtain more information about our sector- specific solutions?

Feel free to contact us – one of our experts will be in touch with you as soon as possible.
